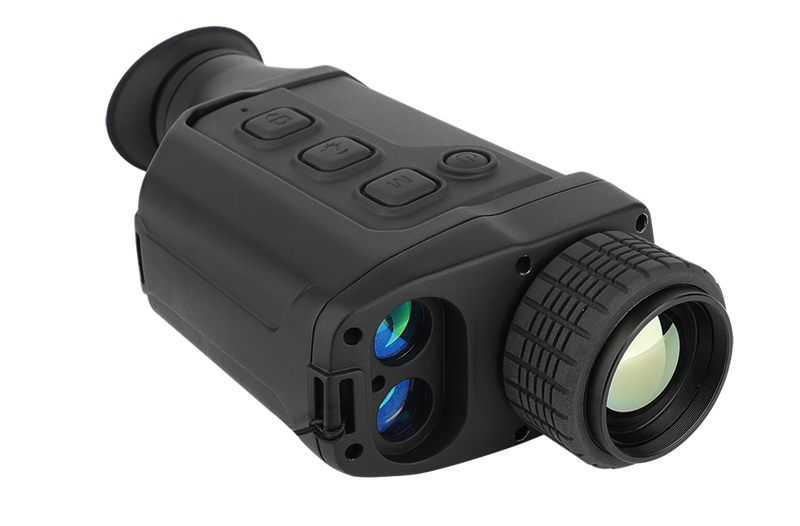

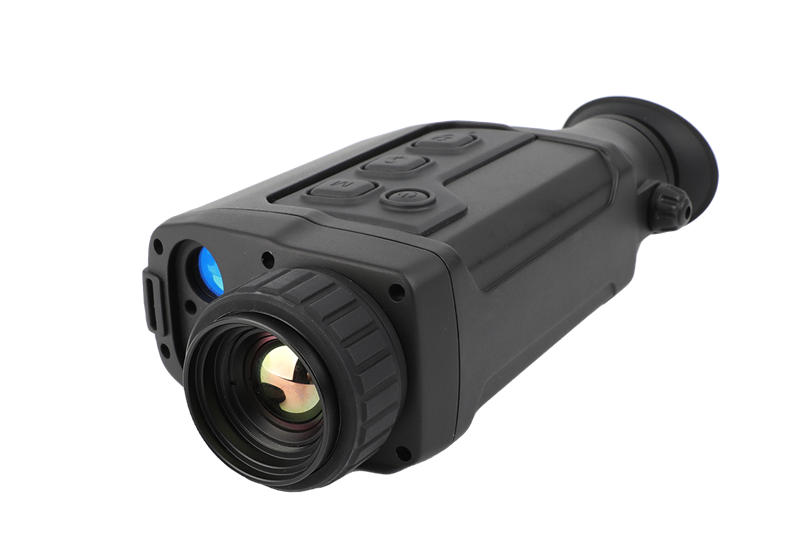

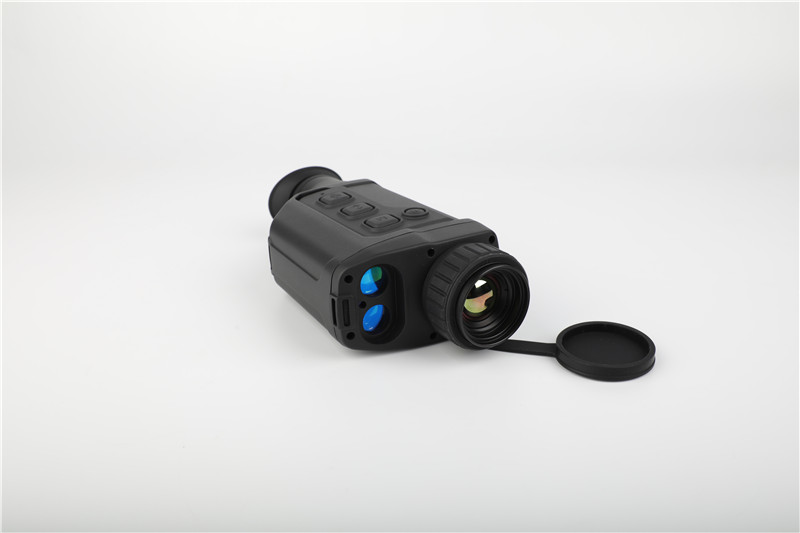

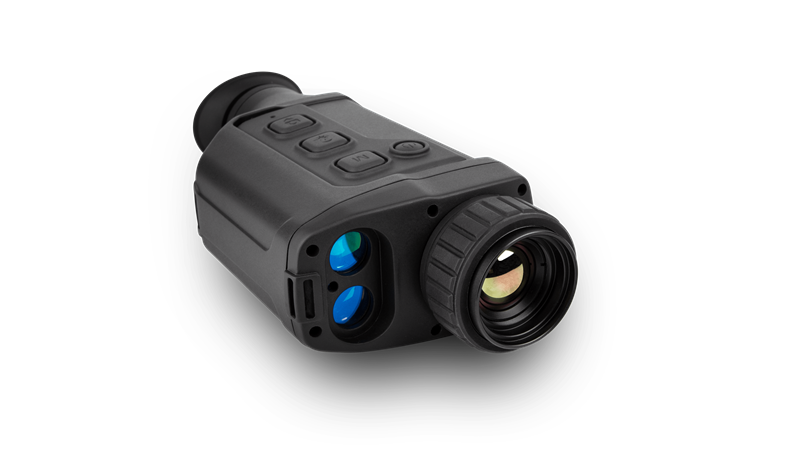

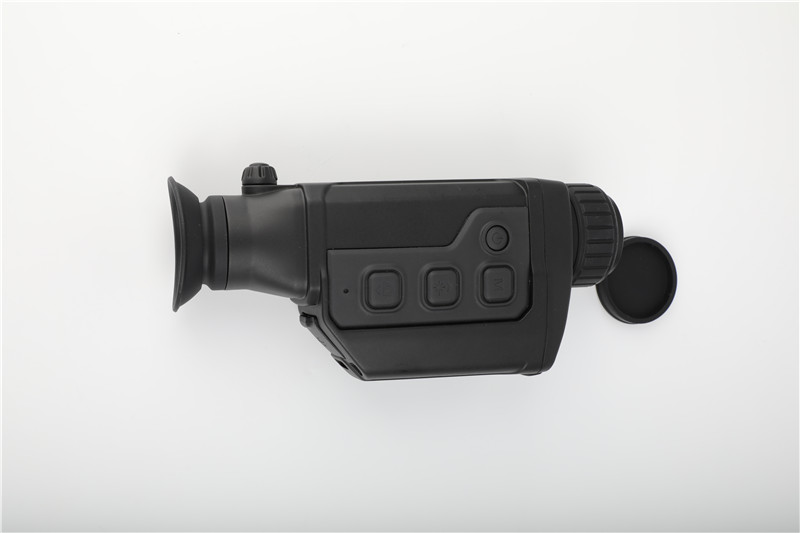

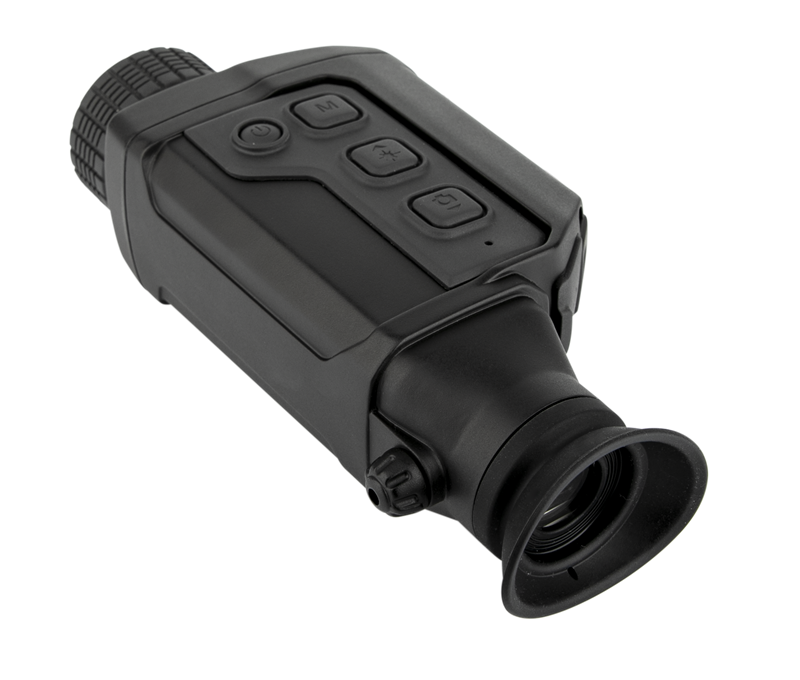

S236 Series Thermal Monocular
Main Features:
Built-in 12μm Pixel pitch sensor Vox Thermal sensor,detection distance longer and Image Clarity clearer
Equipped with 1280*960 display.display more clarity
Support WIFI transmission for Phone APP view,video recording.photos,playback and controls etc
Built-In 1000 meters Longer distance LRF,shows target distance in real time
New GUI design.Hot spot tracking.PIP.Cross hail.and lot of palettes
Support more View mode like CITY.MOUNTAIN,RIVER and RIVER for different use condition
Adapt new Lision II Image enhance Algorithm.More vivid shows Target
IP66 and Drop resistance 1 meter
Specs Items | S236E | S236 | S236P | Sensor | Type | Uncooled Vox FPA Micro bolometer | Pixel Array | 384×288 | 640×512 | Pixel Pitch | 12μm | Spectrum | 8-14μm | Image | FOV | 10.5°*7.9°（±5%） | 7.5°*5.7°（±5%） | 12.5°*10°（±5%） | Focal Length | 25mm | 35mm | Basic Magnification | 2.3x~9.2x | 3.25x~13x | 1.95x~7.8x | Focus Range | 1m~∞ | NETD | ＜40mk@F1.0 | Frame Rate | 50HZ | Focus method | Manual | E-zoom | 1.0x~4.0x | PIP | Support ,Central Area 2X display | Target distance display | Support | LRF range | 10~1000m（±1m | Laser Pointer | Support | GPS | Optional | Electronic Compass | Optional | Image transmission | WIFI | Cross hail | Support | Hot spot Tracking | Support | Memory | Capacity | Internal memory ,Standard 32 GB | Photos | ＞10000 pcs（JPG） | Recording | ＞5hours （MP4） | Display | Display | Color LCOS，1280*960 | Palettes | White/black Hot, Red Hot, others | Diopter | Adjustable Knob | Power Supply | Battery Type | Built-In Lithium Rechargeable | Running time | ＞6 hours | Charging Way | USB Type C interface ( DC5V/2A) | Environment | Working temperature | -20℃- +50℃ | Storage Temperature | -40℃- +70℃ | Encapsulation | IP66 | Drop resistance | 1 m | EMC | Complied with CE/FCC | Physics | Weight | ＜580g | Dimension | ≤220*97*60mm | Interface | USB Type C | USB Type-C (Charging ,Data Transmission, External Video output ) | Tripod | 1/4”-20-UNC | Detection distance | People 1.8*0.5m | 1000m | 1400m | Car 2.3*2.3m | 1600m | 2200m | Recognition Distance | People 1.8*0.5m | 500m | 700m | Car 2.3*2.3m | 800m | 1100m |
|
|
