Item | RS519-384/RS519-384L | RS535-384/RS535-384L | RS535-640/RS535-640L | RS550-640/RS550-640L |
Sensor | Type | Uncooled Vox FPA Micro bolometer |
Pixel Array | 384×288 | 640×512 |
Pixel Pitch | 12μm |
NETD | ≤35 mK (25°C, F# = 1.0) |
Image | Focal Length | 19mm/F1.0 | 35mm/F1.0 | 35mm/F1.0 | 50mm/F1.0 |
FOV(±5%) | 13.8°×10.4° | 7.5°×5.7° | 12.5°×10.0° | 8.8°×7.0° |
Min Focus | 50HZ |
Lens Aperture | Manual |
Display | Display | 0.39 inch Color OLED 1440*1080 Resolution |
Exit Pupil distance | 40mm |
Eyepieces Magnification | 15X |
Basic Magnification | 1.77x~7.08x | 3.26x~13.04x | 1.91x~7.64x | 2.72x~10.88x |
Diopter | Adjustable -5D~+5D |
Thermal imaging Operation | Brightness/Contrast | Adjustable |
Palette | White hot/black hot /red hot/Pseudo hot /forest mode |
E-Zoom | x2，x4 |
PIP | Support |
Hot Spot track | Support |
NUC | Manual/Auto |
WIFI | Support |
Electronic Compass | Support |
Motion Sensor | Support |
Cross hair | Yes，Multi kinds |
Zeroing Data | Up to 5 kind of Zeroing profiles |
Bad Pixel Replacement | Support |

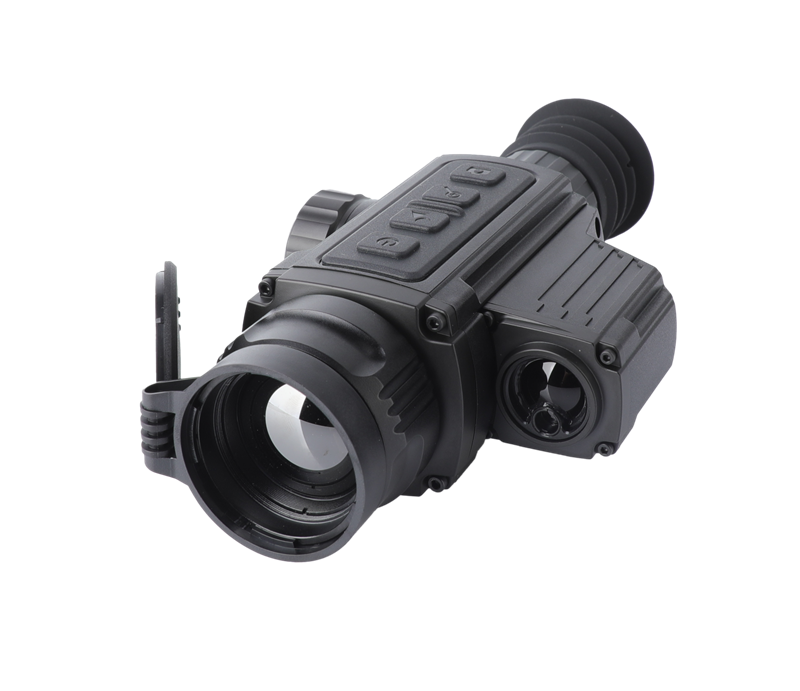

LRF* | Wavelength :905nm,Up to 1000 meters and Minimum distance is 10 meters ,accuracy : ±1 meter ；Optional |
Memory | Built in | 32G |
Recording Type | Video /Photos Recording |
Battery | Battery Type | Single standard 26500 |
Running time | ＞5 Hours |
Environment | Shock Resistance | 800g/ms |
Vibration Resistance | 2g，GB/T2423.10（IEC60068-2-6） |
EMC | CE Complied |
Humidity | 0~95% |
Working Temperature | -30℃~+55℃（-22°F 至 131°F） |
Storage Temperature | -40℃~+70℃ |
Physics | Housing Color | Black |

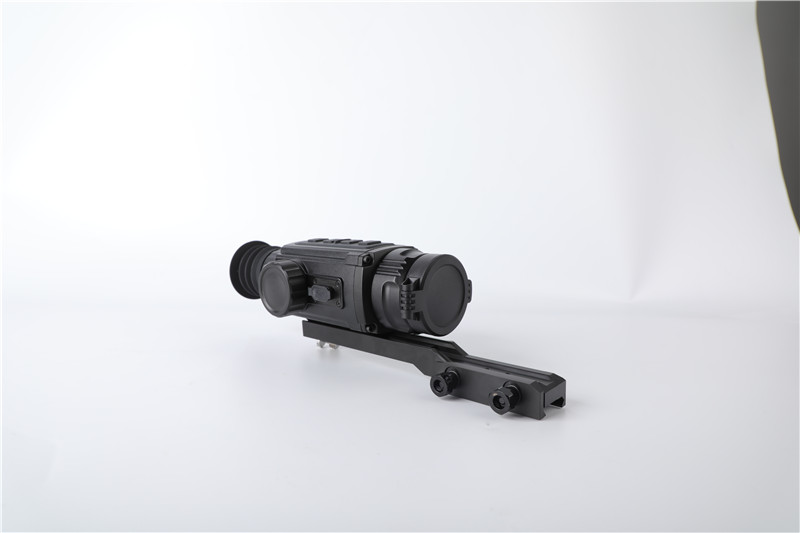

Mounting | M5 Thread interface |
Encapsulation | IP66 |
Dimension | ≤165*80*65mm; ≤165*110*65mm（LRF） | ≤190*80*65mm; ≤190*110*65mm（LRF） | ≤190*80*65mm; ≤190*110*65mm（LRF） | ≤200*80*65mm; ≤200*110*65mm（LRF） |
Weight | ≤470g; ≤532g（LRF） | ≤520g; ≤582g（LRF） | ≤525g; ≤587g（LRF） | ≤570g; ≤632（LRF） |
Interface | Power Supply | Type-C interface (Charging ,Data Transmission, External Video output ) |
Detection distance | People（1.8×0.5）m | 750m | 1400m | 1400m | 1900m |
Car（2.3×2.3）m | 1800m | 2200m | 2200m | 3200m |
Recognition Distance | People（1.8×0.5）m | 376m | 700m | 700m | 1000m |
Car（2.3×2.3）m | 910m | 1100m | 1100m | 1600m |
