Items | MS715E | MS715 | MS715P |
Sensor | VOx uncooled focal plane array micro bolometer |
Spectrum | 8 - 14 μm |
Pixel Array | 384×288 | 640×512 |
Pixel Pitch | 12μm |
NETD | ≤35mk@30℃ |
IR lens |
Focal length | 35mm | 50mm | 50mm |
FOV | 7.5°*5.7°（±5%） | 5.3°*4.0°（±5%） | 8.8°*7.0°（±5%） |
Focusing method | Manual focus |
Low-light lens |
Resolution | 1920（H）×1080（V） |
Image display |
Monitor | Binocular 0.39-inch color OLED, resolution 1440*1080 |
Interpupillary distance | 56~71mm adjustable |
Diopter adjustment | -5D~+5D adjustable |
Image storage |
Storage card | Built-in memory |
Storage method | Photo/Video |
File format | JPG/MP4 |
Capacity | Standard 32G |
Function |
Brightness/ Gainess | Auto/manual |
Image correction | Auto/manual |
E-zoom | 1.0~8.0x |
Picture-in-picture | Yes |
Hotspot Tracking | Yes |
Laser Ranging | / | 1000m±1m (905nm) |
Distance display | / | Real-time display of ranging distance |
Laser pointer | / | Yes(635) |
GPS positioning | / | Yes |
Electronic compass | Yes |
Wifi transmission | Yes |
Scene mode | Natural, enhanced, highlighted |
Image mode | Low light mode, infrared thermal imaging mode, dual light fusion mode |
Image color code | White hot, black hot, iron red, red hot, ocean, desert, forest, etc. |
Power system |
Battery type | 2 18650 batteries |
Battery continuous working time | >5h |
Charging method | Support online charging and dedicated charger |
External power supply | DC5V/2A（USB Type-C） |
Sleep function | Yes |
Environment |
Working temperature | -30℃～55℃ |
Storage temperature | -40℃～70℃ |
Humidity | ≦95％（non-condensing） |
Impact resistance | 30g，GB/T2423.5（IEC60068-2-27） |
Anti-vibration | 2g，GB/T2423.10（IEC60068-2-6） |
Encapsulation | IP66 |
Physical |
Weight | ≤0.9Kg（with battery） |
Color | Black |

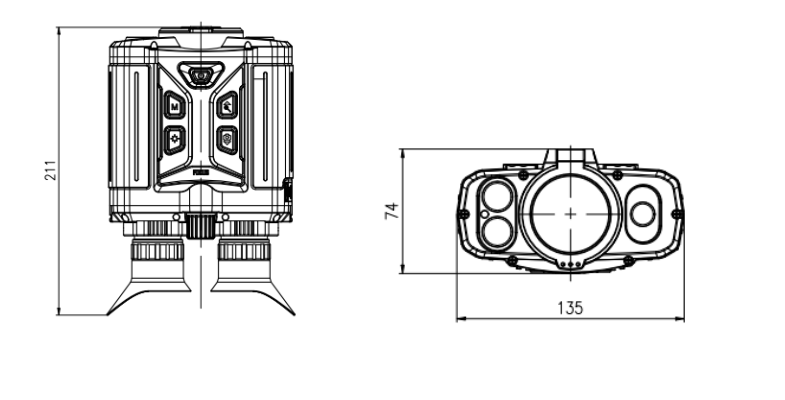

Dimension | 211（L）mm×145（W）mm× 74（H）mm |
External interface |
Data interface | Yes |
External video | HDMI |
USB | Yes |
Installation interface | 1/4"-20-UNC |
Detection distance |
Human（1.8×0.5）m | Low light：3200m IR：1400m Fusion：1400m | Low light：3200m IR：2000m Fusion：2000m | Low light：3200m IR：2000m Fusion：2000m |
Vehicle（2.3×2.3）m | Low light：5100m IR：2300m Fusion：2300m | Low light：5100m IR：3200m Fusion：3200m | Low light：5100m IR：3200m Fusion：3200m |
Detection distance |
Human（1.8×0.5）m | Low light：1600m IR：700m Fusion：700m | Low light：1600m IR：1000m Fusion：1000m | Low light：1600m IR：1000m Fusion：1000m |
Vehicle（2.3×2.3）m | Low light：2500m IR：1100m Fusion：1100m | Low light：2500m IR：1600m Fusion：1600m | Low light：2500m IR：1600m Fusion：1600m |
