New Fusion Binoculars

1 Product Overview

　　The new fusion telescope is mainly used for handheld use,day and night observation of targets and scenes,with ranging and directional capabilities as well as certain recognition and camouflage capabilities.

2 Main indicators

　　2.1 Mode of operation

　　(1)There are four modes:low light,infrared,black and white,and color.Under the four modes,it can work day and night;

　　(2)In the mode of black-and-white and color,it has the function of highlighting the target;

　　(3)The mode of fusion color has the jungle,the snow land,the sea,the city,the desert and so on typical scene.

　　2.2 Identify the distance

　　(1)low-light working mode:under the condition of No Moon,the side recognition distance of medium-sized truck is not less than 500m;

　　(2)Infrared working mode:at night,the side recognition distance of medium truck is not less than 1200m;

　　(3)Fusion working mode:the recognition distance is not less than 90%of the maximum recognition distance of low-light mode and infrared mode.

　　2.3 FOV：≥16°×12°

　　2.4 Diopter adjustment range:-4SD～+4SD。

　　2.5 Laser Ranging:

　　(1)Minimum range:≤20m;

　　(2)Maximum range:≥6km;

　　(3)Ranging error:≤2m;

　　(4)Accuracy:≥98%;

　　(5)Repetition rate:≥1hz;

　　(6)Laser wavelength:eye safe band.

　　2.6 Magnetic azimuth Angle measurement accuracy:≤0.5°(RMS,host Angle range-15°~+15°).

　　2.7 Weight:host(including battery,eye mask)weight≤1Kg.

　　2.8 Continuous working time:≥12 hours(room temperature).

　　2.9 Environmental adaptability

　　(1)Operating temperature:-40℃~+55℃;

　　(2)Storage temperature:-55℃~+70℃;

3 product characteristics

　　(1)Binocular display observation,can be used hand-held,can also be set up by the support;

　　(2)With power control,mode switching,contrast adjustment,brightness adjustment,image polarity conversion(infrared mode)and image and video storage,playback,retrieval(file name retrieval)and deletion control functions;

　　(3)With undervoltage indication,battery reverse protection function;

　　(4)with division display,blanking function;

　　(5)The image display includes real-time information such as azimuth Angle,ranging results,and electricity;

　　(6)With unexpected power failure information and status backup function;

　　(7)With self-test function;

　　(8)It can be ranging in four modes:low light,infrared,black and white fusion and color fusion;

　　(9)with external trigger ranging function;

　　(10)With automatic continuous ranging function;

　　(11)It has the function of measuring the distance between multiple targets;

　　(12)with memory target orientation,distance and time functions;

　　(13)With 1.0~4.0 continuous electronic multiplier function;

　　(14)With the eyepiece anti-leakage function,the exposure distance is not more than 10m.

4 product structure

　　The host consists of four parts:imaging part,target location part,display part and power supply part.

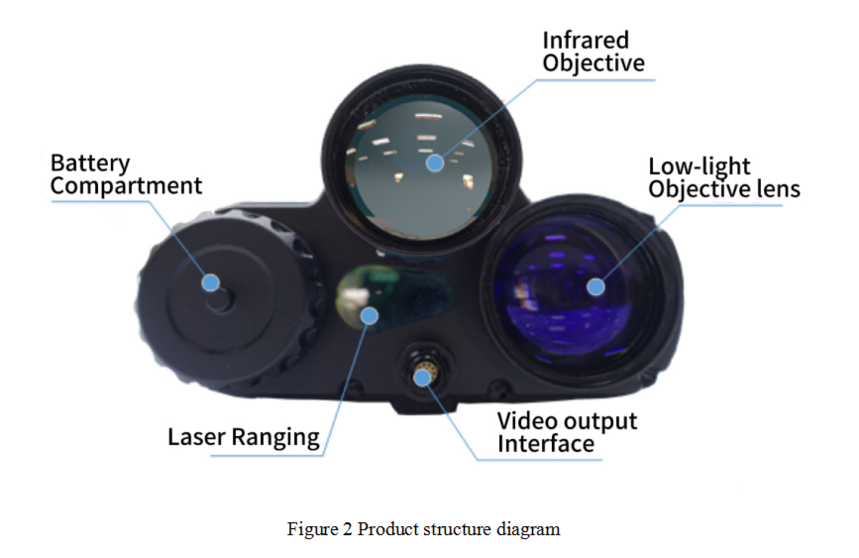

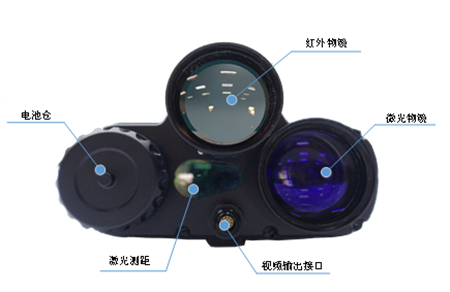

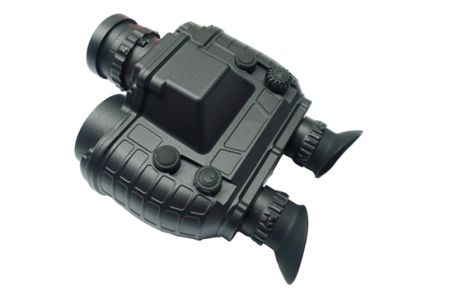

　　The whole mechanism adopts a basic symmetrical structure along the middle axis.The low-light module and power supply module are placed on both sides,the infrared thermal imaging module and ranging module are placed in the middle,and the infrared thermal imaging module lens is prominent for easy focusing.The machine center of gravity is centered to meet the requirements of ergonomics.As shown in Figure 2.
