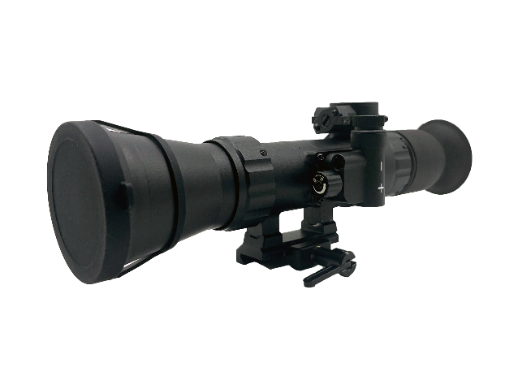

SG-2 Type Low-light Sighting Telescope

　　Uses

　　The product is a low-light vision instrument which is assembled on the gun or sniping-rifle in order to observe and aim at objects at night.

　　Characteristics

　　The product takes the super second generation image intensifier assembly，has the characteris-tics of small size,light weight,high-precision and good reliability,with the dual functions of either equipped on the gun or for observation at night.

　　Perfomance

　　1.Vision Magnification:3.8×

　　2.Field of View:12°

　　3.Objective Focusing Range:20m~∞

　　4.Vision Adjusting Range:-6D~+3D

　　5.Scale Regulation Range:±20mil

　　6.Exit pupil distance：40mm

　　7.Distinguishable distance:

　　8.Under the circumstances of no moon and stars and medium contrast,the upright soldiers at the distances of 300m can be detected

　　9.Working Temperature:－40℃～+50℃

　　10.Working Voltage:2.0V～3.4V

　　11.Power Supply:Above 40h of continuous working tine with one CR2 lithium with low temperature and high power

　　12.Exterior Size:290mm×82mm×93mm

　　13.Weight:≤0.7Kg

　　14.Reliability:Mean Time Between Failures MTBF≥1500h
