Helmet monocular night vision glasses

1.Overview

　　Helmet monocular night vision glasses are mainly used for night operations,reading,maintenance,observing surrounding terrain,etc.Meet the needs of miniaturization,lightweight,and practicality.

2.Main functions and indicators

　　2.1 Main functions

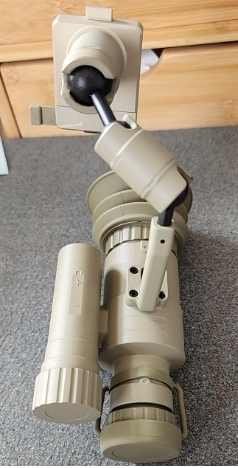

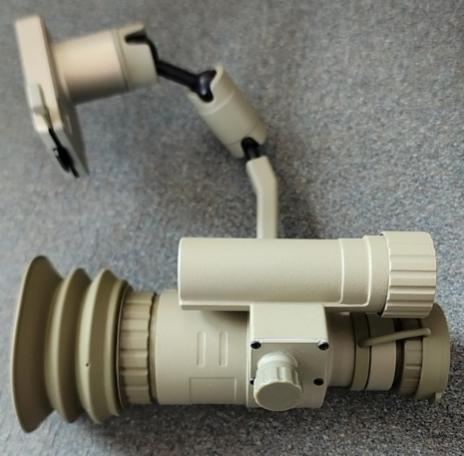

　　Equipped with helmet bracket,the helmet bracket can be adjusted left and right,high and low,front and back,connected reliably,loaded and unloaded quickly,and can be operated by one hand,turned up,and close to the helmet;

　　Capable of resisting strong light irradiation;

　　Can adapt to goggles and gas masks.

　　2.2 Main indicators

　　a)Operating distance:Under clear starry sky conditions without a moon,the distance for human recognition is greater than 110 meters;

　　b)Field of view angle:35.5°(horizontal)x 25.5°(vertical);

　　c)Display resolution:800 x 600;

　　d)Focusing range:230mm~∞;

　　e)Weight:250g main unit,including 350g bracket;

　　f)Continuous working time:40 hours;

　　g)Exit pupil distance:26mm;

　　h)Visual range:-5SD~+3SD;

　　i)External dimensions of the host:64mm x 81mm x 45mm;

　　j)Working temperature:-40℃~+55℃.
