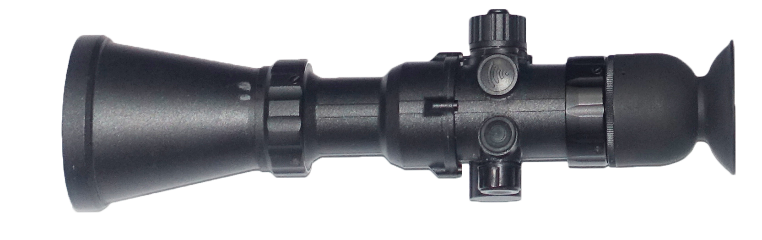

Digital Sight

Product Introduction

　　The product is used for observation and aiming of targets day and night.

Product Features

　　1.Having multiple electronic partitions that can be adapted to multiple gun types;

　　2.The utility model can be connected with the optical waveguide glasses by wireless or wire to realize concealed shooting;

　　3.Universal interface,can be used for a variety of gun types by replacing the connector seat;

　　4.Small in size,light in weight,can be informatized,and is convenient for image acquisition,processing,data information sharing,etc.

Performance Index

　　1.Weight:no more than 0.8kg;

　　2.FOV:not less than 8°×6°;

　　3.Observation distance:Visibility not less than 10km,under the condition of medium contrast without moon and starry sky,day and night to the active individual target is not less than 300m;

　　4.Reticle adjustment range:±15mil;

　　5.Zero position movement(including repeated clamping error):no more than 0.5mil;

　　6.Continuous operating time(room temperature,sighting state):no less than 8h;

　　7.Environmental Adaptability:with good vibration resistance,temperature shock resistance,damp heat,salt spray,waterproof and dustproof performance;

　　8.Operating temperature:-40℃～+50℃.
