Multi-functional Night Vision Goggles

Uses

　　The multi-functional night vision goggles is mainly used to observe terrain,targets,shooting effects,etc.at night or under bad weather.

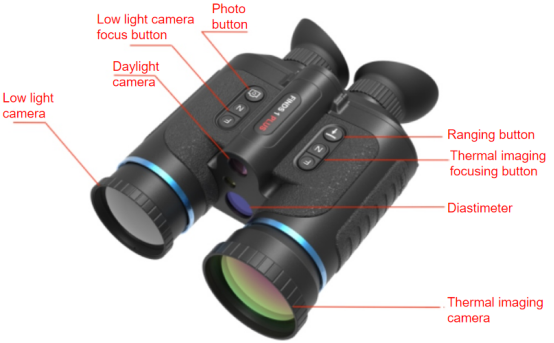

　　This product integrates Infrared observation,low-light observation,visible light observation,laser rangefinder,positioning,electronic compass and storage module,in one,can observe day and night long-range targets and get the geographic coordinates of a local location and azimuth and distance date of targets and improve day and night observation.

　　Main features

　　It has infrared,low-light and fusion modes;it has eye-safe laser ranging,high-precision self-positioning and target orientation;with memory card recording,data rapid destruction and export functions.It has optional WiFi,Bluetooth or 4G/5G communication module,voice recognition auxiliary operation function.

　　Main indicators

　　1.Observation distance and accuracy

　　(1)Identification distance:

　　Under good weather conditions(temperature does not exceed 20°,the visibility is not less than 8 km,and the light is 105-1×10-3 lux)and the effective identification distance of the vehicle should be recognized under visibility condition not less than 5 km(before image fusion).

　　(2)Laser ranging range and accuracy:

　　Ranging from 20 m to 5 km(under good weather conditions),the error is not greater than 5 m,the repeat frequency is not less than 1Hz.

　　(3)Positioning accuracy:

　　The positioning module is used to accurately determine the geographical position of the machine,and the self-positioning error is not more than 10 m(CEP);The error of the target azimuth measurement should not be greater than 0.5°(RMS),the positioning accuracy of the target at 5 km should not be greater than 50 m(CEP).The positioning information adopts the CGCS2000 coordinate system,and can be displayed in two ways:latitude and longitude coordinates and rectangular coordinates.

　　2.Imaging field of view

　　The maximum field of view angle is 6.1×4.8°,and the infrared channel has the function of electron multiplication and low light pass.The channel has an optical doubling function to enhance the detection and observation effect.

　　3.Record storage capability

　　Storage target orientation,date and other information can be displayed with pictures and videos,and the storage capability should not be less than 128GB.The memory can be easily plugged and replaced,and the storage content can be easily exported(the video frame should not be lower than the resolution of the built-in display,and the frame rate should not be lower than 24±11Hz).

　　4.Visual enhancements

　　(1)It can fuse the infrared and low-light images of the target,and the image fusion has obvious visual enhancement effect;

　　(2)Under the condition that the visibility is not more than 5 km,the fog penetration capacity is not less than 1.5 times of the visibility;

　　(3)It has image processing functions such as image contrast adjustment and electronic doubling,and the range of electronic doubling is not less than 1.0~4.0 times.

　　5.Portability performance

　　It has the ability of single-hand portable control equipment to work,weighing no more than 2.5 kg(including host and working battery),the total weight of the whole unit and necessary spare parts is not more than 3.5 kg.

　　6.Startup and Connected Work Hours

　　Ask for no less than 6 hours(20°room temperature)when working continuously.

　　7.Interface capability

　　Standard USB interface(USB3.0 standard,Type-C electrical interface),RS232 data interface,standard PAL video output interface and external charging interface.

　　8.Operating temperature:-40°C~+50°C:
