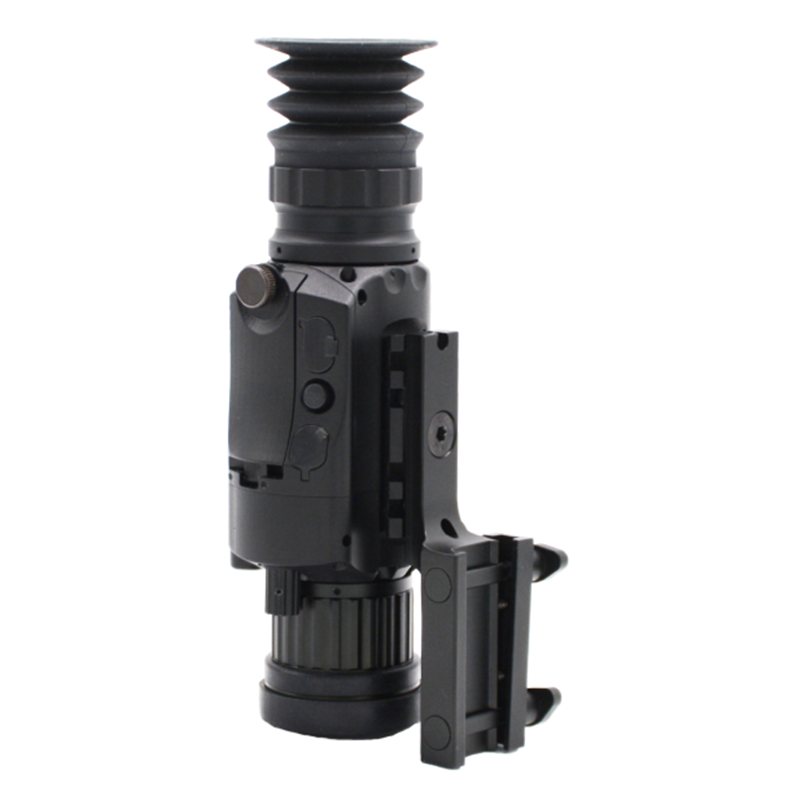

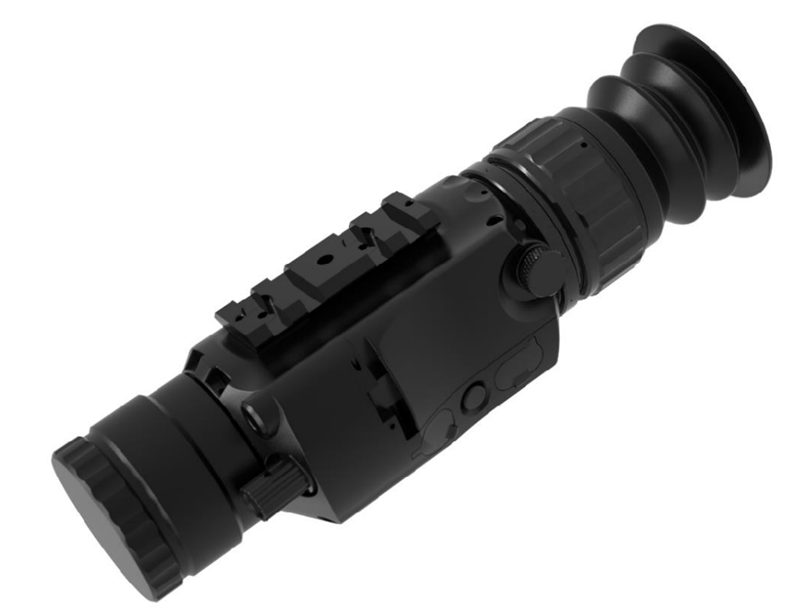

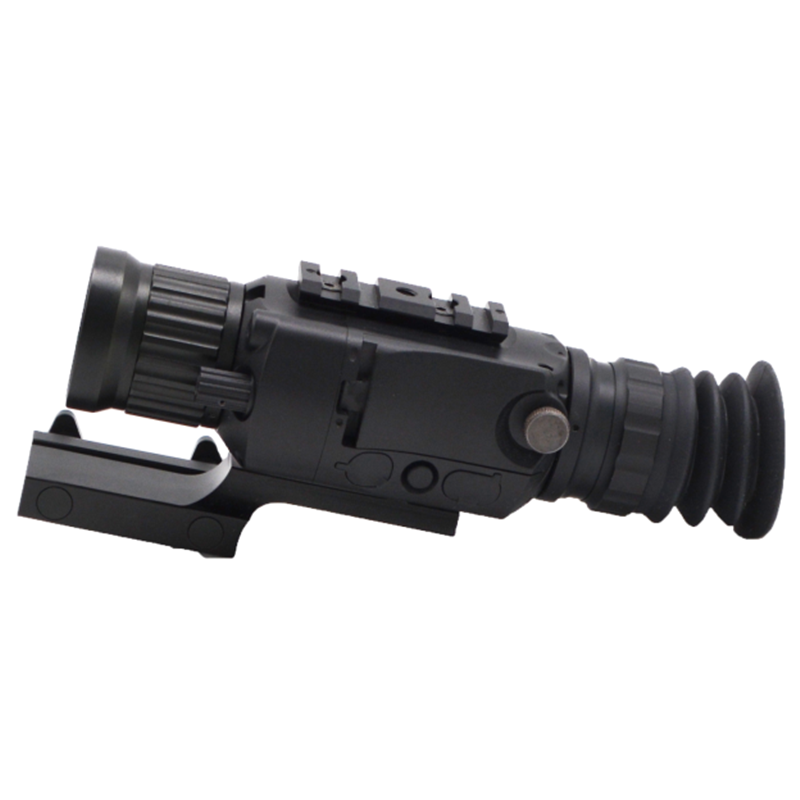

Multi-function thermal imager

　　Uses

　　The multi-function thermal imager adopts vanadium oxide uncooled focal plane detector and real-time digital image processing circuit,which can work continuously day and night,and has the ability to penetrate fog,smoke and dust particles,and can synchronously complete search,reconnaissance,aiming and other actions,which is an ideal assistant for you to complete anti-terrorism,law enforcement and hurting tasks.

　　Features

　　1.No flock/baffle design,50/60Hz-real time imaging display,fast movement without smearing;

　　2.White hot/black hot/red hot/brown/iron red/rainbow,a variety of colors are available;

　　3.Standardized interface,with front sight cross automatic color adjustment of dash line;

　　4.Manual or fully automatic image enhancement mode,which can find targets in extremely harsh environments;

　　5.Very low power consumption,can work continuously for a long time;

　　6.With laser red dot indication;

　　7.Optional high-precision laser ranging function.

　　Function

　　1.Detector:vanadium oxide 640 x 480 17um/12um;;

　　2.Sensitivity:≤40mk f/1,300K;

　　3.Spectral range:8～14um;

　　4.Focal lens:35mm（available in 50/35/25/19);

　　5.FOV:10.7°×8°;

　　6.Discover distance:Lens 1500m;

　　7.Focusing range:10m～∞;

　　8.Exit pupil distance:50mm;

　　9.Video output:RS170 CCIR/PAL composite video;

　　10.Image polarity:white hot/black hot/red hot/brown/iron red/rainbow;

　　11.Reticle:a movable reticle;

　　12.Battery type:3.7v rechargeable lithium battery,1100mah×2;

　　13.Operating hours:6h;

　　14.Operating temperature:-30℃～+60℃;

　　15.Storage temperature:-40℃～+70℃;

　　16.Protect class:IP67;

　　17.Weight:540g;

　　18.Size(length×diameter):180mm(L)×∅55mm.
