1.Product characteristics
●8 types of reticle lines,5 types of grid line colors,to meet various usage requirements.
●5 types of pseudo-color(white hot,black hot,green hot,iron red,red hot)for quick switching.
●Having the function of connecting to a mobile terminal via Wi-Fi to transmit video images.
●1x~8x continuous electronic zoom.
●Supports picture-in-picture function.
●Supports photo and video capture function

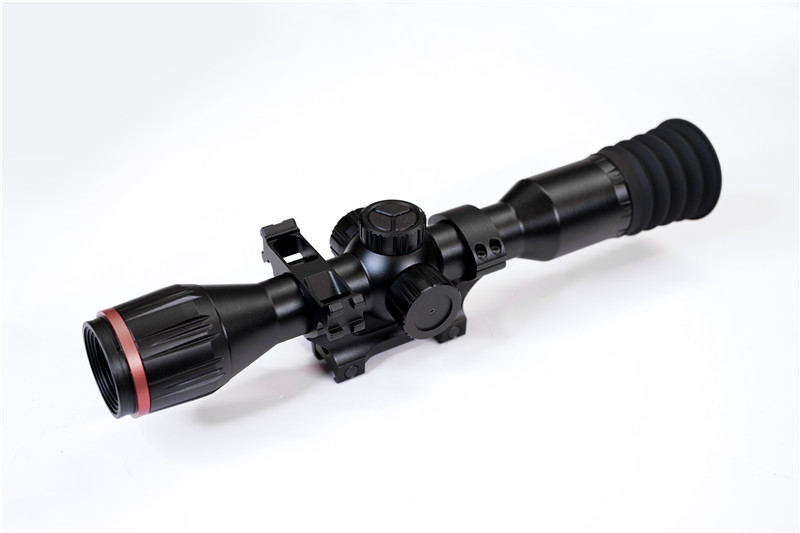

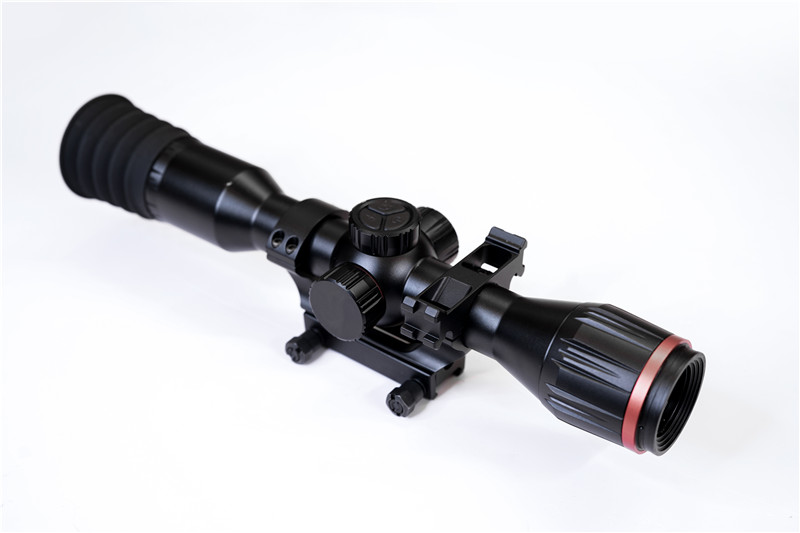

Product Name | Thermal imaging scope（Scope type） |
Sensor size | 640×512，12μm |
Focal length | 25/35/50 |
Detection range (person) | 1000m/1400m/2000m |
FOV | 17.4°×14° 12.5°×10° 8.7°×7° |
Set-Up Time | ≤20s |
Photo/Video | JPG/ MP4, H.264 compression, audio and video synchronization |
Power supply | Rechargeable 3.6V, 4700mAh large capacity 21700 battery |
Continuous working time | ≥8h |
Data interface | Type-c, can power and charge, can read the memory card data |
Radio interface | Wi-Fi data communication, 2.4GHz, with corresponding mobile APP |
Operation temperature | -40℃~+50℃ |
Storage temperature | -40℃~+60℃ |
IP Grade | IP67 |
